Trench Burner T300 from Air Burners

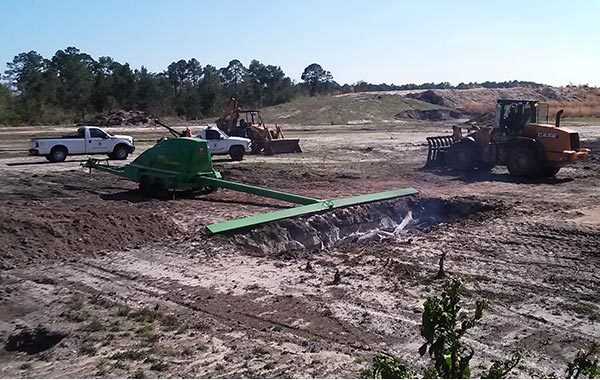

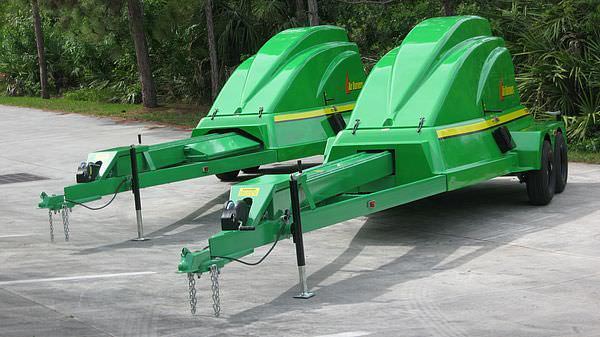

The patented Air Burners T300 Trench Burner is AirBurner’s number one selling wood waste burning machine. The Trench Burner, as the name implies, uses a trench dug into the ground as the burn chamber. The air curtain is provided by a manifold that extends from the trailer. The Trench Burner is a completely portable system that incorporates all the machinery in a fully assembled trailer, making it easy to tow.

EASILY MOBILIZED AND VERY EFFICIENT

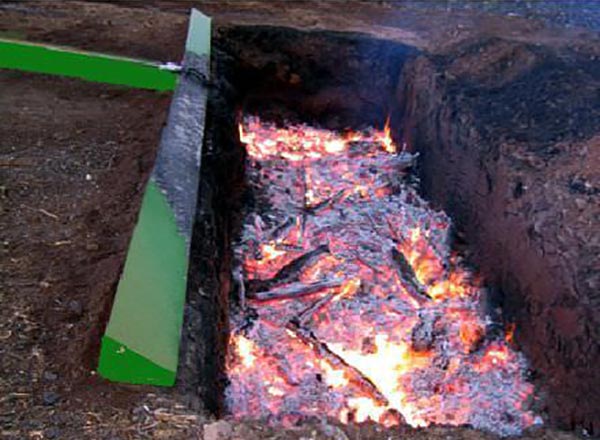

The Trench Burner is highly portable and is unique in that it incorporates an easily extended carrier pipe and manifold that does not require any assembly. The T300 has a 20-foot carrier pipe, which brings the air from the trailer to the 30-foot manifold. The manifold is hinged in a “T” fashion at the end of the carrier pipe and unfolds to run along the edge of your trench. The air comes out of the nozzles of the manifold and is distributed along its length. The unique and important feature of the Air Burners Trench Burner machine is the carrier pipe. The carrier pipe is critically important to prevent the fire in the trench from damaging or destroying your machine. The Air Burners Trench Burner has a 20-foot carrier pipe, which allows for a 20-foot set back (the distance from the back of the trailer to the edge of the trench). The fire in the trench can reach 2000°F. If the wind should shift during your operation, you want the trailer set back as far as possible to prevent damage.

POWER

Three-cylinder Turbo Diesel Engine 49 HP (HATZ 3H50 or eqauivalent engine); full enclosure; security locks; Emission certified US EPA Tier4 final; engine mounted PTO with multi-belt drive system and digital control panel.

OVERALL SIZE L x W x H

28′ 10″ x 8′ 2″ x 6′ 10″

WEIGHT lbs

6,500

FUEL CONSUMPTION gal/hr

2.0

THROUGH-PUT tons/hr

8
